MMTSB Tool Set - REX/GB Refinement of NMR Structures

Objective and Overview

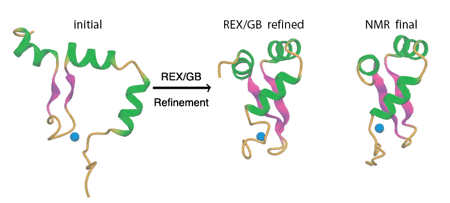

This tutorial illustrates how to use the replica exchange (REX) molecular dynamics (MD) simulation together with the GBSW implicit solvent to refine NMR structures. The simulation is carried out by CHARMM and the MMTSB Tool Set. All required files including this page can be downloaded here.

1. Iniitial Structures and NOE restraints

We will use the Zinc-dependent Redox Switch Domain of the Chaperone Hsp33. This protein domain has a novel fold and the NMR structure was solved by Jane Dyson's group at Scripps and is now available from the Protein Data Bank with the PDB code 1XJH. A minimized average structure of the NMR ensemble (hsp.ref.pdb) can be viewed in VMD.

During the early stages of structure determination, only a limited set of NOE distance restraints were assigned (see mrdata/manual.mr), and the initial structure calcuation with CYANA and CNS failed to identify the tertiary fold. The representative structures computed by CNS are included in inipdb/*.pdb. One can plot the residue NOE contacts using gnuplot using commands,
     gnuplot
     set grid
     plot 'data/mrdata/manual.mr' u 4:11 w p
The NOE data have already been translated to CHARMM format using script mr2charmm.pl, resulting in files files/mrdata/manual.noe.*. They are grouped into intra-residue (i=j), sequential (|i-j|=1), medium-range (|i-j|<=4) and long-range (|i-j|)>4) NOEs. In this data set, there were only 30 long-range NOEs, six of which define zinc coordination and the rest of which are between residues in the beta-hairpin. There is virturally no information about the tertiary fold and this is why the CYANA and CNS calculations failed to converge.

2. REX/GB Refinement Simulation

The REX/GB refinement simulation requires both the initial structures and the NOE distance restraints. The simulation is done by script rex.sge, which is also shown below. The simulation length is 500 ps (1000 x 0.5 ps) and it should take about 12 hours on the CTBP cluster with 2.40GHz Xeon CPU.
   #!/bin/csh -f

   # request the job to run at current director
   #$ -cwd

   # number of cpus
   #$ -pe mpi 8

   # walltime of the jobs (maximum is 48 hours)
   #$ -l h_rt=12:00:00

   #$ -N nmr_ref
   #$ -e nmr_ref.err
   #$ -o nmr_ref.log
   #$ -m e

   cat $TMPDIR/machines | sort -u | awk '{print $1" 2 /tmp/" user}' \
       user=$USER > host.$$

   aarex.pl -mp -hosts  host.$$  -n 1000 -dir rexgb \
    -log rexserver.log -charmmlog rex.log \
    -mdpar param=22x,xtop=top22_zinc.inp,xpar=par22_zinc.inp \
    -mdpar dynsteps=250,dyntstep=0.002,cuton=16,cutoff=16,cutnb=20 \
    -mdpar gb=gbsw,gbswsgamma=0.01,gbswdgp=1.5,scalerad=nina,cmap=1 \
    -par archive,natpdb=data/hsp.ref.pdb \
    -custom setup data/noe.str -temp 16:300:600 data/inipdb/*.pdb

   exit
This script differs from typical REX-MD simulations (such as de novo peptide folding) in several places.

1). There are muliple initial structures. aarex.pl will automatically assign each initial structure to a replica. In principle, one can also refine a single structure. However, in case of NMR structure calcuation, it is better to use a diverse ensemble of structures generated by CNS or DYANA, such that there is a higher chance of sampling the true native fold.

2). The NOE restraints are imposed during the REX/GB simulation through -custom setup noe.str option. aarex.pl will read the script noe.str before the dynamics runs for all replicas. The purpose here is to combine experimental data with modern GB force field to achieve better structural convergence than either GB or NMR alone. The file noe.str is a simple CHARMM script that set up all the NOE distance restraints.

3). Non-standard topology and parameter files are specified through -xtop, -xpar options to handle the zinc ion that coordinates with four cysteine residues.

3. Extracting, Clusterinng and Energy Minimization

During the course of the simulation, one can examine the convergence of energy using,
    rexinfo.pl -bycond 0 -dir rexgb
It is also a good idea to make sure that exchange acceptance ratio is sufficiently high, which is given in file rexgb/rexserver.ninx. When the job is finished, one can extract the structures sampled at the lowest temperature and cluster them to obtain refined models. Results of a previous run are included here (see data/rexgb_example). The energy converges after 600-700 REX steps, shown below:



1).Run following command under rexgb directory to extract the last 200 structures at the lowest ensemble,
    cd rexgb
    ../scripts/extractEns.pl -inx 801:1000
2). Go to the directory ens0 that was just created, and cluster the structures using enscluster.pl with default options,
    cd ens0
    enscluster.pl -l 7:62 rex
The results of clustering can be checked by,
    showcluster.pl rex
3). Compute the average structures of each clusters and minimize them,
    ../../scripts/separate_cluster.pl rex
    $CHARMMEXEC nfile=[NFILE] cid=[Cluster ID] < ../../scripts/cluster_ana.inp
    [repeat for each clusters]
Scripts extractEns.pl, separate_cluster.pl and cluster_ana.inp are included in the TAR/GZ file.

Written by J. Chen
